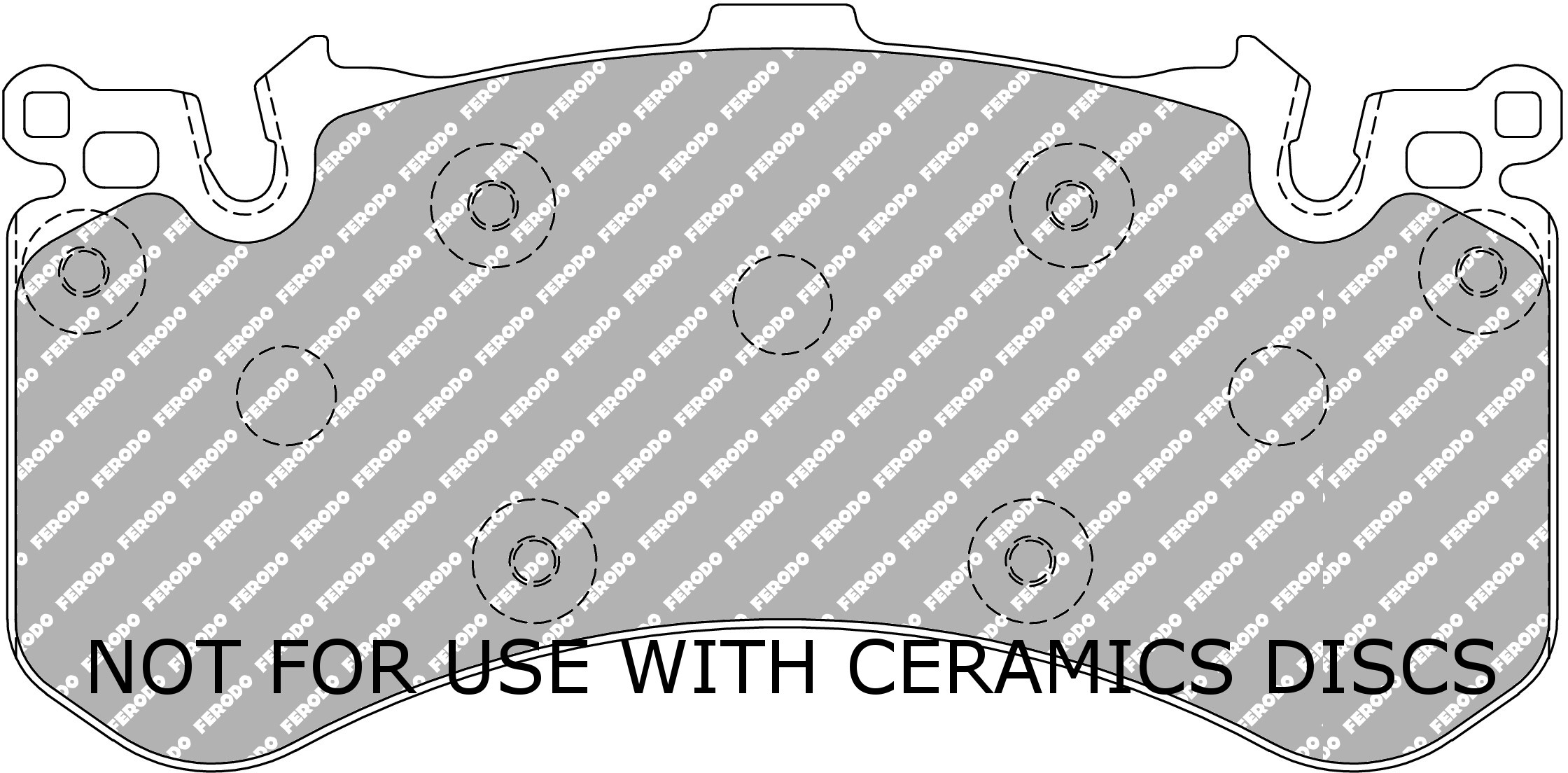

FCP4468

FRONT

187.7mm = 7.390"

93.2mm = 3.669"

16.8mm = 0.661"

69mm = 2.717"

FRONT

187.7mm = 7.390"

93.2mm = 3.669"

16.8mm = 0.661"

69mm = 2.717"

NOTE: NOT FOR USE WITH CERAMICS DISCS

Family shape

FCP4468

1 Material

DISCOVER

Compound: DS2500
NO R90 CERTIFICATION
For: Track day, light race use, Rear GT
Optimal operating temperature: 0° to 500°C

1 Material

H (DS2500)

MATERIALS COMPARISON

MODEL

FROM > TO

F/R

CODE

SYSTEM

AUDI

A8 (4H_) 2.0 TFSI hybrid

1984

155

2012 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 1984
KW: 155
FROM > TO: 2012 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS & armoured vehicle,PR 1LN

DISCOVER

A8 (4H_) 2.0 TFSI hybrid

1984

155

2012 >

FRONT

FCP4466

MODEL: A8 (4H_)
CC: 1984
KW: 155
FROM > TO: 2012 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC&Armoured,Disc 400mm,PR 1LW

DISCOVER

A8 (4H_) 3.0 TDI quattro

2967

184

2010 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 2967
KW: 184
FROM > TO: 2010 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS & armoured vehicle,PR 1LN

DISCOVER

A8 (4H_) 3.0 TDI quattro

2967

184

2010 >

FRONT

FCP4466

MODEL: A8 (4H_)
CC: 2967
KW: 184
FROM > TO: 2010 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC&Armoured,Disc 400mm,PR 1LW

DISCOVER

A8 (4H_) 3.0 TDI quattro

2967

155

2010 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 2967
KW: 155
FROM > TO: 2010 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS & armoured vehicle,PR 1LN

DISCOVER

A8 (4H_) 3.0 TDI quattro

2967

155

2010 >

FRONT

FCP4466

MODEL: A8 (4H_)
CC: 2967
KW: 155
FROM > TO: 2010 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC&Armoured,Disc 400mm,PR 1LW

DISCOVER

A8 (4H_) 3.0 TDI

2967

150

2011 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 2967
KW: 150
FROM > TO: 2011 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS & armoured vehicle,PR 1LN

DISCOVER

A8 (4H_) 3.0 TDI

2967

150

2011 >

FRONT

FCP4466

MODEL: A8 (4H_)
CC: 2967
KW: 150
FROM > TO: 2011 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC&Armoured,Disc 400mm,PR 1LW

DISCOVER

A8 (4H_) 3.0 TDI quattro

2967

193

2015 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 2967
KW: 193
FROM > TO: 2015 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS,PR 1LN/1LX

DISCOVER

A8 (4H_) 3.0 TFSI quattro

2995

245

2010 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 2995
KW: 245
FROM > TO: 2010 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS & armoured vehicle,PR 1LN

DISCOVER

A8 (4H_) 3.0 TFSI quattro

2995

245

2010 >

FRONT

FCP4466

MODEL: A8 (4H_)
CC: 2995
KW: 245
FROM > TO: 2010 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC&Armoured,Disc 400mm,PR 1LW

DISCOVER

A8 (4H_) 3.0 TFSI quattro

2995

213

2010 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 2995
KW: 213
FROM > TO: 2010 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS & armoured vehicle,PR 1LN

DISCOVER

A8 (4H_) 3.0 TFSI quattro

2995

213

2010 >

FRONT

FCP4466

MODEL: A8 (4H_)
CC: 2995
KW: 213
FROM > TO: 2010 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC&Armoured,Disc 400mm,PR 1LW

DISCOVER

A8 (4H_) 3.0 TFSI quattro

2995

228

2011 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 2995
KW: 228
FROM > TO: 2011 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS & armoured vehicle,PR 1LN

DISCOVER

A8 (4H_) 3.0 TFSI quattro

2995

228

2011 >

FRONT

FCP4466

MODEL: A8 (4H_)
CC: 2995
KW: 228
FROM > TO: 2011 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC&Armoured,Disc 400mm,PR 1LW

DISCOVER

A6 (4G2, C7, 4GC) S6 quattro

3993

309

2012 >

FRONT

FCP4468

MODEL: A6 (4G2, C7, 4GC)
CC: 3993
KW: 309
FROM > TO: 2012 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS,Disc Diam 400,PR 1LU

DISCOVER

A6 (4G2, C7, 4GC) S6 quattro

3993

309

2012 >

FRONT

FCP4466

MODEL: A6 (4G2, C7, 4GC)
CC: 3993
KW: 309
FROM > TO: 2012 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS,Disc Diam 400,PR 1LW

DISCOVER

A6 (4G2, C7, 4GC) S6 quattro

3993

331

2014 >

FRONT

FCP4468

MODEL: A6 (4G2, C7, 4GC)
CC: 3993
KW: 331
FROM > TO: 2014 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS,Disc Diam 400,PR 1LU

DISCOVER

A6 Avant (4G5, C7, 4GD) S6 quattro

3993

309

2012 >

FRONT

FCP4468

MODEL: A6 Avant (4G5, C7, 4GD)
CC: 3993
KW: 309
FROM > TO: 2012 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS,Disc Diam 400,PR 1LU

DISCOVER

A6 Avant (4G5, C7, 4GD) S6 quattro

3993

309

2012 >

FRONT

FCP4466

MODEL: A6 Avant (4G5, C7, 4GD)
CC: 3993
KW: 309
FROM > TO: 2012 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS,Disc Diam 400,PR 1LW

DISCOVER

A6 Avant (4G5, C7, 4GD) S6 quattro

3993

331

2014 >

FRONT

FCP4468

MODEL: A6 Avant (4G5, C7, 4GD)
CC: 3993
KW: 331
FROM > TO: 2014 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS,Disc Diam 400,PR 1LU

DISCOVER

A7 Sportback (4GA, 4GF) S7 quattro

3993

309

2012 >

FRONT

FCP4468

MODEL: A7 Sportback (4GA, 4GF)
CC: 3993
KW: 309
FROM > TO: 2012 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR USE WITH CERAMIC DISCS ,For PR code:1LU

DISCOVER

A7 Sportback (4GA, 4GF) S7 quattro

3993

309

2012 >

FRONT

FCP4466

MODEL: A7 Sportback (4GA, 4GF)
CC: 3993
KW: 309
FROM > TO: 2012 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS,Disc Diam 400,PR 1LW

DISCOVER

A7 Sportback (4GA, 4GF) S7 quattro

3993

331

2014 >

FRONT

FCP4468

MODEL: A7 Sportback (4GA, 4GF)
CC: 3993
KW: 331
FROM > TO: 2014 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR USE WITH CERAMIC DISCS ,For PR code:1LU

DISCOVER

A7 Sportback (4GA, 4GF) S7 quattro

3993

331

2014 >

FRONT

FCP4466

MODEL: A7 Sportback (4GA, 4GF)
CC: 3993
KW: 331
FROM > TO: 2014 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR USE WITH CERAMIC DISCS ,For PR code:1LW

DISCOVER

A8 (4H_) 4.0 TFSI quattro

3993

309

2012 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 3993
KW: 309
FROM > TO: 2012 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS & armoured vehicle,PR 1LN

DISCOVER

A8 (4H_) 4.0 TFSI quattro

3993

309

2012 >

FRONT

FCP4466

MODEL: A8 (4H_)
CC: 3993
KW: 309
FROM > TO: 2012 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC&Armoured,Disc 400mm,PR 1LW

DISCOVER

A8 (4H_) S8 quattro

3993

382

2012 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 3993
KW: 382
FROM > TO: 2012 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS & armoured vehicle,PR 1LN

DISCOVER

A8 (4H_) S8 quattro

3993

382

2012 >

FRONT

FCP4466

MODEL: A8 (4H_)
CC: 3993
KW: 382
FROM > TO: 2012 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS

DISCOVER

A8 (4H_) 4.2 TDI quattro

4134

258

2009 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 4134
KW: 258
FROM > TO: 2009 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS & armoured vehicle,PR 1LN

DISCOVER

A8 (4H_) 4.2 TDI quattro

4134

258

2009 >

FRONT

FCP4466

MODEL: A8 (4H_)
CC: 4134
KW: 258
FROM > TO: 2009 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC&Armoured,Disc 400mm,PR 1LW

DISCOVER

A8 (4H_) 4.2 FSI quattro

4163

273

2009 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 4163
KW: 273
FROM > TO: 2009 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS & armoured vehicle,PR 1LN

DISCOVER

A8 (4H_) 4.2 FSI quattro

4163

273

2009 >

FRONT

FCP4466

MODEL: A8 (4H_)
CC: 4163
KW: 273
FROM > TO: 2009 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC&Armoured,Disc 400mm,PR 1LW

DISCOVER

A8 (4H_) 6.3 W12 quattro

6299

368

2011 >

FRONT

FCP4468

MODEL: A8 (4H_)
CC: 6299
KW: 368
FROM > TO: 2011 >
FRONT / REAR: front
CODE: FCP4468
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC DISCS & armoured vehicle,PR 1LN

DISCOVER

A8 (4H_) 6.3 W12 quattro

6299

368

2011 >

FRONT

FCP4466

MODEL: A8 (4H_)
CC: 6299
KW: 368
FROM > TO: 2011 >
FRONT / REAR: front
CODE: FCP4466
SYSTEM: BREMBO
RESTRICTION: NOT FOR CERAMIC&Armoured,Disc 400mm,PR 1LW

DISCOVER

BRAND

CODE

FMSI

D1291

WVA

24847

HAWK

HB731

Raybestos

DR1291

FRONT

FCP4468H

DS2500: Track day, light race use, Rear GT

DISCOVER
