PRODUCT CODE: FBD****R
TZ-24 design with six mounting holes
USE: ROAD and OFF-ROAD applications
MAIN FEATURES
• Compatible with all brake pad types
• Braking band manufactured in AISI420 high carbon steel for performance and durability.
• Tempered throughout the material’s thickness to ensure a minimum surface hardness of HRC35 throughout the disc’s life

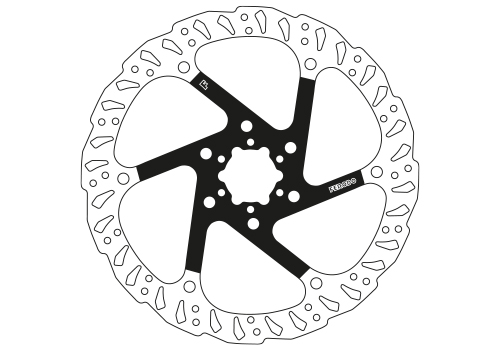

TZ-24 DESIGN
• Braking band design balances performance, modulation capability and weight
• Engineered to perform consistently during heavy-duty braking use
• Used in MTB World Cup downhill racing
PART NUMBERS
| Disc part number | Outside diameter (mm) | Thickness (mm) |
| FBD0016R | 140 | 1,8 |
| FBD0017R | 160 | 1,8 |
| FBD0018R | 180 | 2,0 |
| FBD0019R | 203 | 2,0 |
| FBD0020R | 220 | 2,0 |
